美国人PROLine^TM通用型家用电热水器E61-20U-015SV 美国鹰牌热水器80升家用电热水器

希望少量热水或在附属建筑物里享受热水的、家庭用户或小企业的理想选择。
　　Ideal for homeowners or small businesses needing small quantities of hot water or for remote baths in outbuildings.

• 螺纹旋进，直接内浸加热元件，1.5KW/120伏（如果需要其他功率和电压的热水器，请与我们联系），效率最高
  Screw-in, Direct Immersion Heating Element, 1.5 KW/120 Volts (other wattages and voltages available) for maximum efficiency

• 1英寸厚有效防止热量损失，降低能源成本的的不含氯氟烃的聚氨酯泡沫
  1" Non-CFC Polyurethane Foam to prevent heat loss & reduce energy costs

• 抗腐蚀保护的Fused Ceramic Shield Tank^TM（熔融陶瓷盾板）内胆
  Fused Ceramic Shield Tank^TM for anti-corrosion protection

• 降温减压安全阀侧面安装孔
  Side Temperature & Pressure Relief Valve Opening

• 非金属，防腐蚀排污阀
  Non-Metallic, Corrosion-Free Drain Valve

• Fused Ceramic Shield^TM（熔融陶瓷盾板）内胆
  坚固、厚实、耐用的蓝钴陶瓷经过871^oC高温熔融在内胆内部表面上，形成防腐蚀内层，可靠保护和使用可达数年之久。
  Fused Ceramic Shield^TM
  A tough, thick durable coat of blue cobalt ceramic is fused to the tank’s interior surfaces at 1600^oF, forming a corrosion-resistant lining for years of dependable protection and use.

• 加热元件
  螺纹拧进，直接浸入，1500瓦/240伏加热元件，效率最高。如果需要其他种类的电源配置，请与我们联系。
  Heating Elements
  Screw-in, direct immersion, 1500-watt, 120-volt heating elements for maximum efficiency. Available in multiple wattages and voltages for every job.

• 不含氯氟烃的聚氨酯泡沫绝缘保温层
  这种内胆环绕着厚实的不含氯氟烃的聚氨酯泡沫绝缘保温层，将热量保留在内胆内，节约能源。
  Non-CFC Foam Insulation
  The tank is surrounded by a thick coat of non-CFC polyurethane foam to trap heat inside the tank, saving energy.

• 汲取管（6U和12U型号）
  能够把进入的冷水带入到内胆深处，降低热水稀释降温效应。
  Dip Tube (6U and 12U Models)
  Carries cold inlet water deep into the tank to minimize temperature dilution of hot water.

• 降温减压安全阀
  位于热水器侧面，使得采用管道连接到排污口或建筑物外部更加简便易行。
  T&P Valve
  Conveniently located on the side of the tank to facilitate piping to a drain or external to the building.

• 3/4英寸通径的水接头
  23公升（6加仑）和45公升（12加仑）型号的水接头位于热水器顶部或侧面；72公升（19加仑）型号只能侧面连接。
  3/4” Water Connections
  Located on top. 6- and 12-gallon models are top or side connect; 19-gallon model is side connect only.

• 阳极棒
  顶部安装，加强型阳极，加强对内胆的保护，延长内胆的使用寿命。
  Anode Rod
  Top-mounted, heavy duty anode for added tank protection, extending the life of the tank.

• 内置电气接线盒
  位于顶部，使用方便的接线盒，适用于1/2英寸或3/4英寸导线管。
  Built-In Electric Junction Box
  Top-located, convenient junction box, ready for 1/2” or 3/4” conduit.

• 温控器/高温限制控制器
  带有高温限制功能的单加热元件温控器，适用于单加热元件热水器。
  Thermostat/High Limit Control
  Single-element thermostat with high limit for single-element heaters.

• 通过的认证标准
  美国UL 174认证。所有型号均通过300 PSI试验压力和150 PSI工作压力检测认证。
  Code Approvals
  Listed to UL 174. All models are certified at 300 PSI test pressure and 150 PSI working pressure.

• 排污阀（只适用于12U和20U型号）
  保护儿童，防腐排污阀。
  Drain Valve (12U and 20U Models)
  Child-resistant, corrosion-resistant drain valve.

　　采用坚固耐用的强力量具钢材料，经过自动控制设备进行成型、轧制滚圆和焊接，确保Fused Ceramic Shield^TM（熔融陶瓷盾板）热水器内胆接缝紧密结实。每个内胆都经过三重检验，确保没有质量问题。

　　Heavy gauge steel is automatically formed, rolled and welded to assure continuous seams for the Fused Ceramic Shield^TM Tank Lining. Each Tank is triple tested to ensure quality.

　　原厂配件质量保证6年。

　　Original factory parts warranted for 6 years.

　　
　　如果需要完整的质量保证资料，请致电021-51002402向美国人热水器公司中国公司咨询书面质量保证书。
　　For complete warranty information consult the written warranty of American Water Heater Company at 021-51002402。

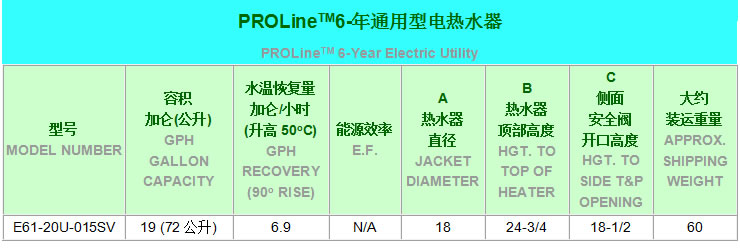

6加仑和12加仑俯视图 TOP VIEW 6, 12 GALLON	侧视图 SIDE VIEW	19加仑俯视图 TOP VIEW 19 GALLON
